BENDING OVER FRONTWARDS

A photographic peek inside the workshop of
Simone Zopf
(Vienna and Hallstadt, Austria)

The making of a bent-top viola da gamba

Pieter Breughel: bass viola da gamba with a bent top

Jan Breughel the elder: Bass viola da gamba (1618)

This depiction of a bass viola da gamba from around 1600 shows clearly that the top was not constructed from one single plank or two planks of wood, as is usual in traditional violin-making, but instead, from (probably) seven or eight strips of wood joined together.

* * * * *

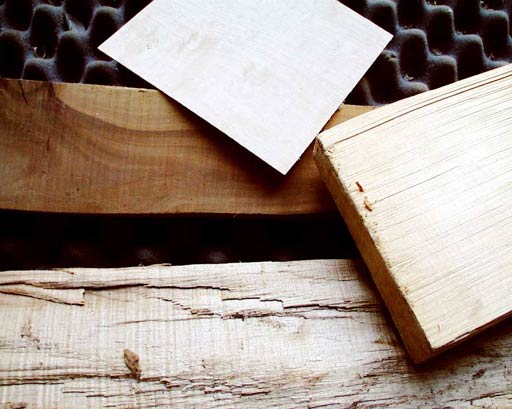

Wood for viol making

Woods used in viol making

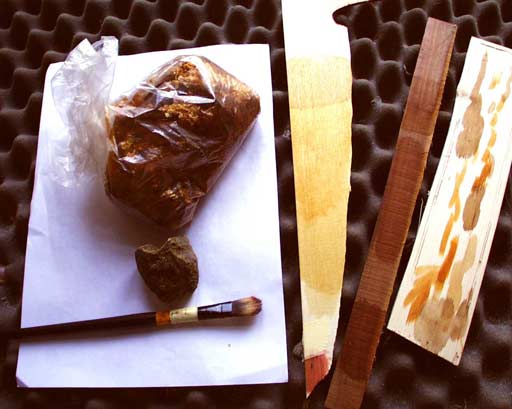

varnish and utensils

Varnish in preparation

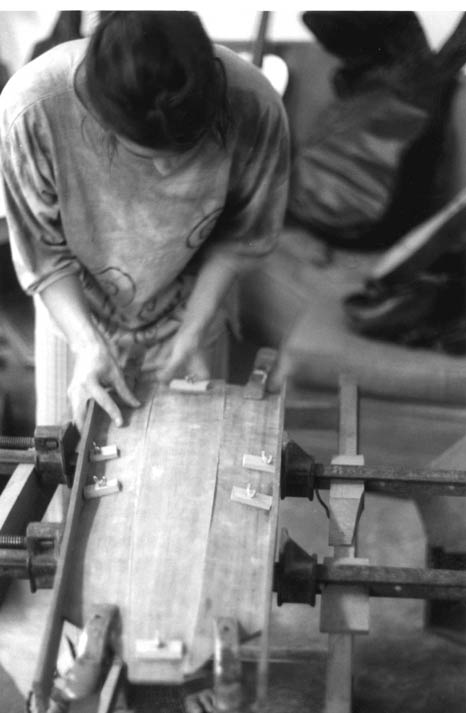

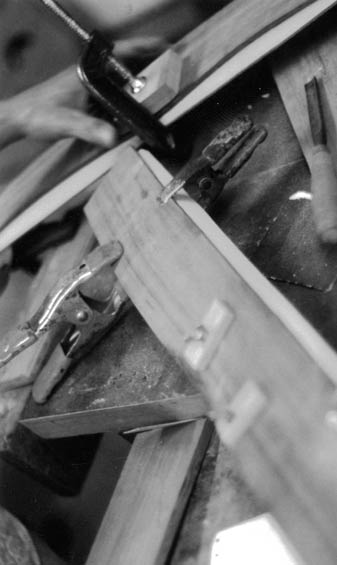

sbending the strips of wood on a form

Bending the five strips of wood for the top

joining the five strips of the top

Joining the five strips of wood of the top
(this is very similar to the technique used for the construction of lutes)

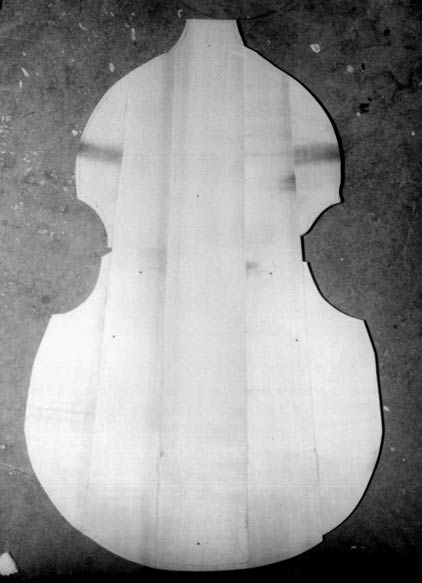

Belly, viewed from the top

The bent belly, as seen from above

Bent belly, as seen from below

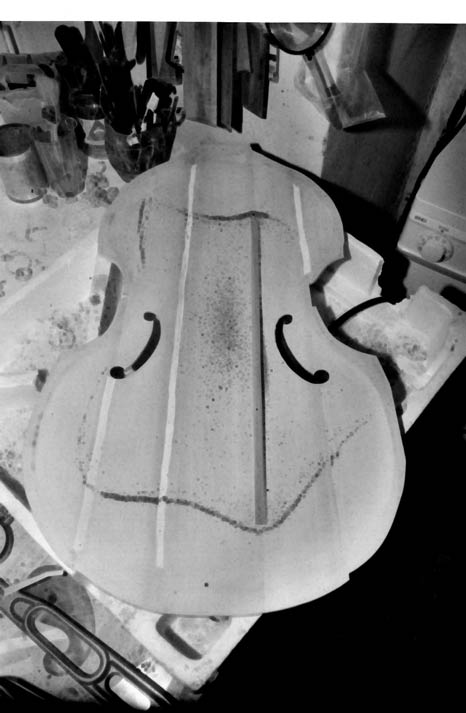

The bent top, inside view

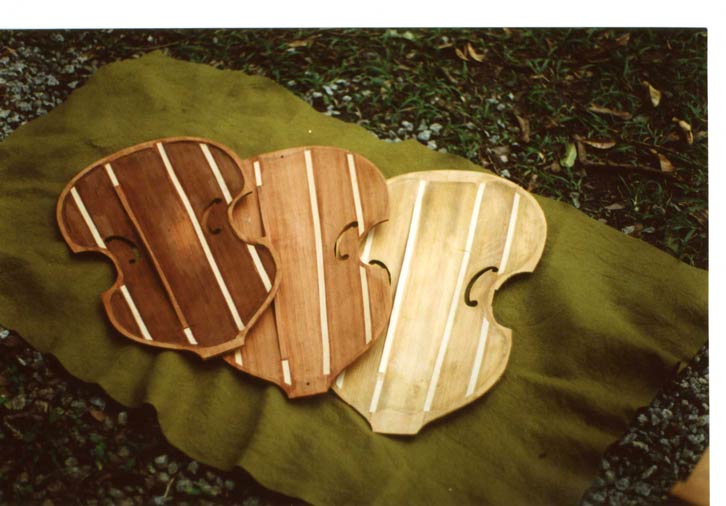

Three bent tops

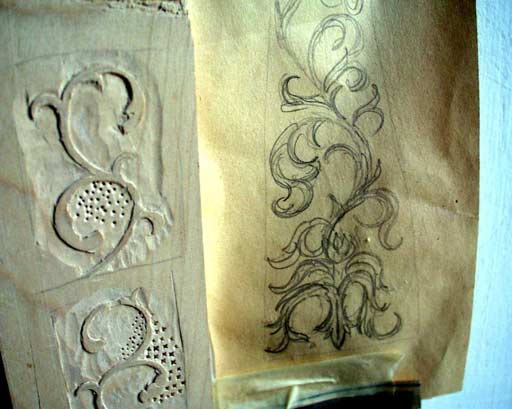

Flloral designs for the scroll and pegbox

Floral design for the peg box and scroll

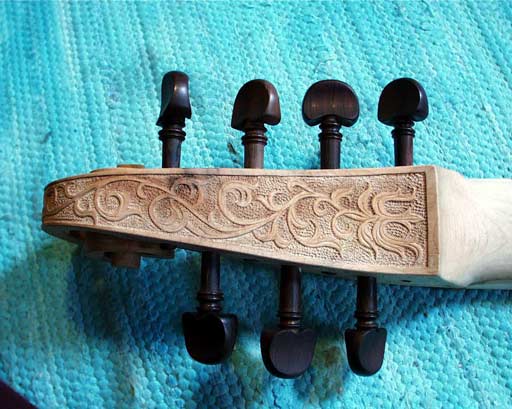

scroll and pegbox with bass relief

The finished decoration on the scroll




Bridges and tools for making them

Bridges and bridge cutting tools

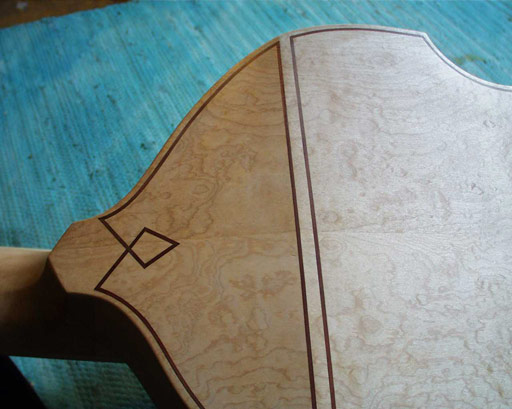

Inlay on the back of the viol

Inlay on the back of the viol

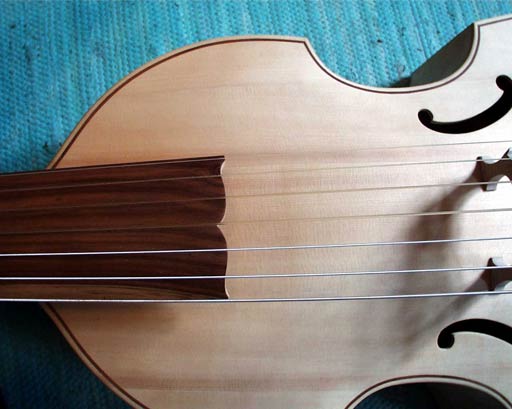

Design of the end of the fingerboard

End of the fingerboard

Instrument-making School Hallstatt

updated 15.03.2011
